Sonos Sub Mini

Deepen your enjoyment of TV, films, and more with bold bass when you pair Sub Mini with Beam, Ray, One, or One SL.

Place it anywhere in the room, breeze through setup with help from the Sonos app, and experience richer, more immersive sound without any buzz.

Feel more immersed in every scene and song with surprisingly rich, clear, and balanced low end.

Unlock your entertainment experience when you pair Sub Mini with Beam or Ray. The 5 GHz WiFi connection enhances audio transmission speed so you can enjoy films, shows, and games with high-quality sound reliably synced with your TV.

Never miss a beat and hear more nuance in every note when you pair Sub Mini with One or One SL.

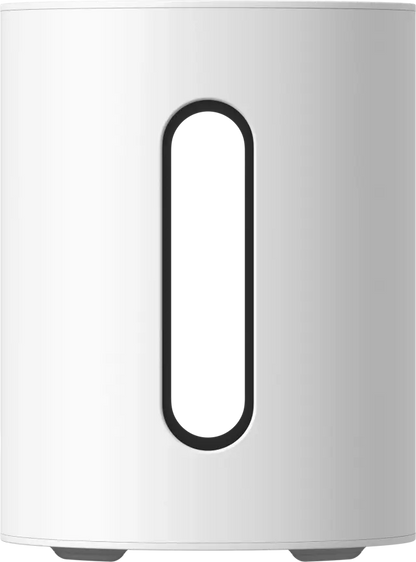

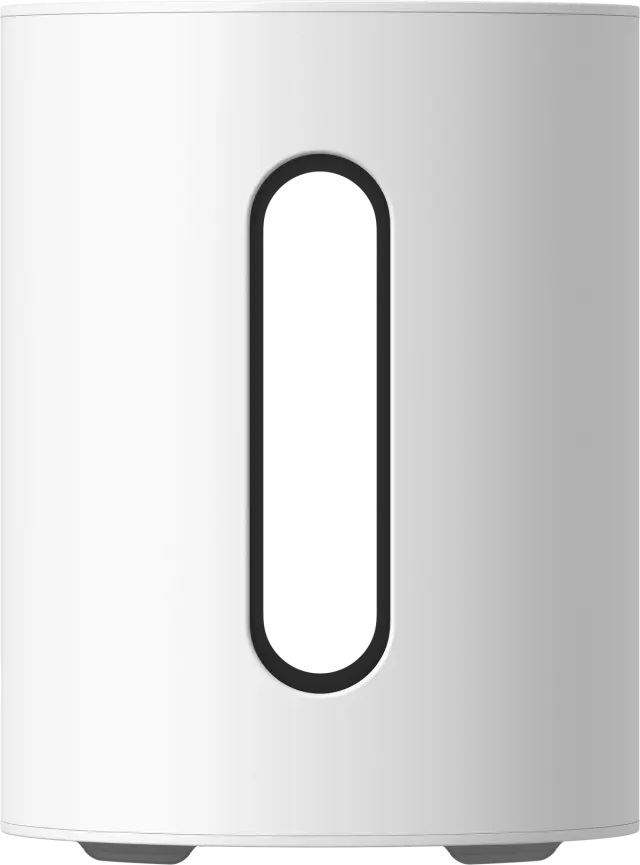

Within the acoustically-sealed cabinet, dual custom woofers generate the full-toned low frequencies of a much larger subwoofer. Advanced processing further enhances the bass response.

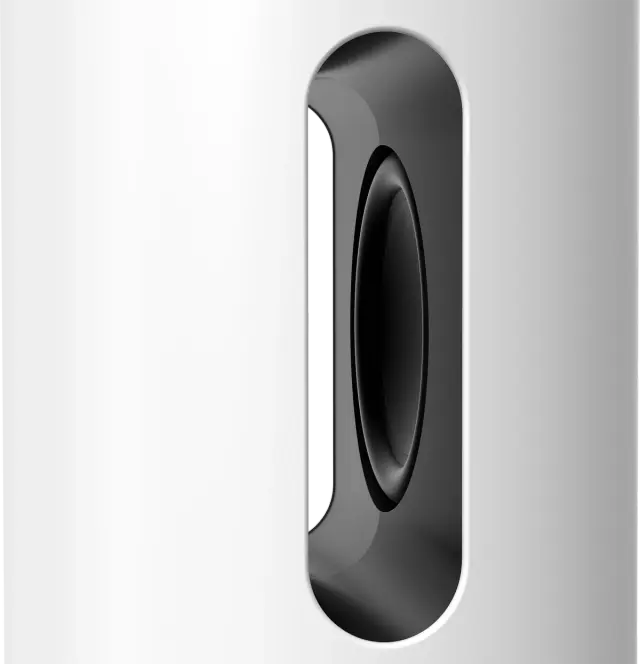

Both woofers face inwards to create a force-cancelling effect that neutralises distortion.

Trueplay™ tuning technology adapts the bass for the unique acoustics of the room so it never sounds harsh, muddy, or flat — even if you place Sub Mini next to the wall.

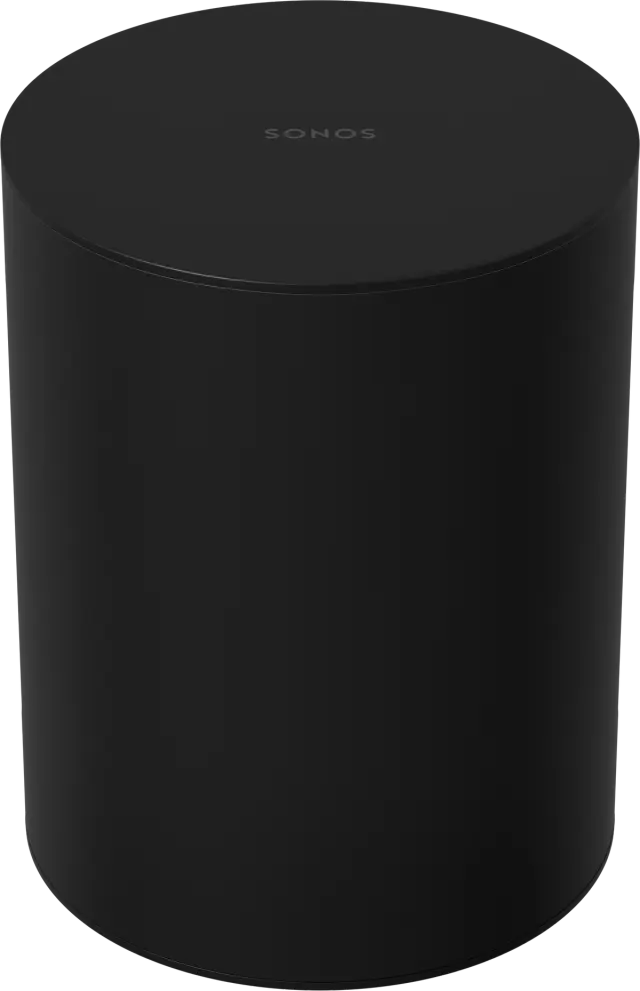

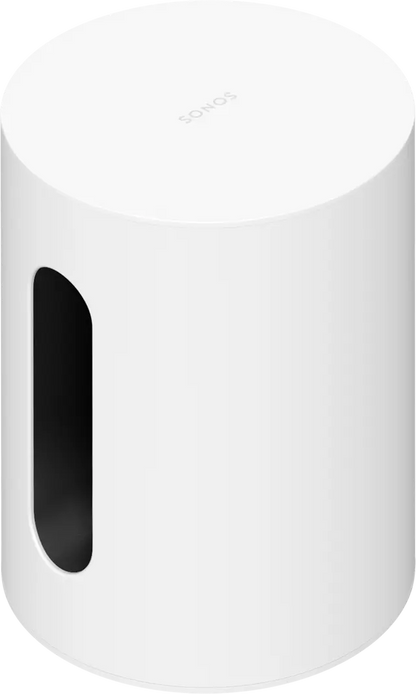

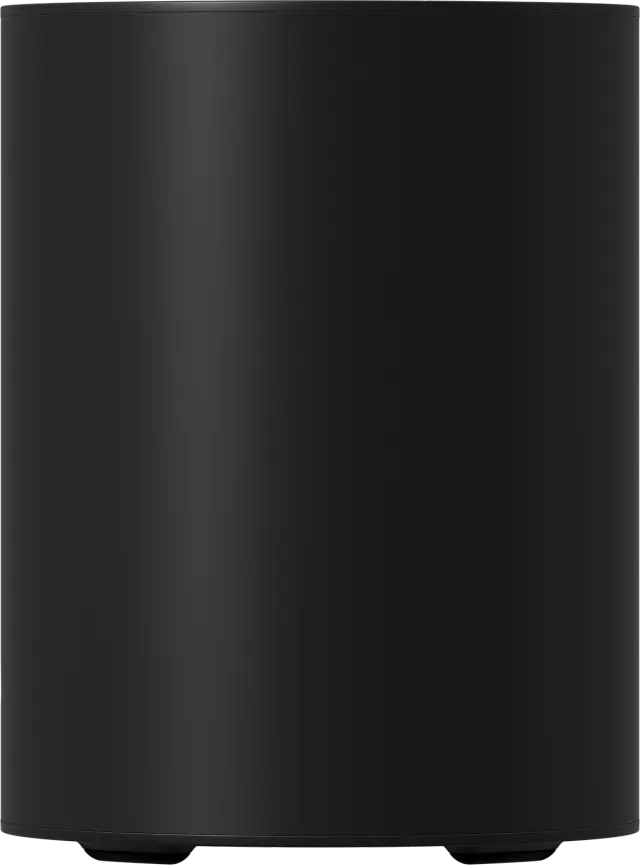

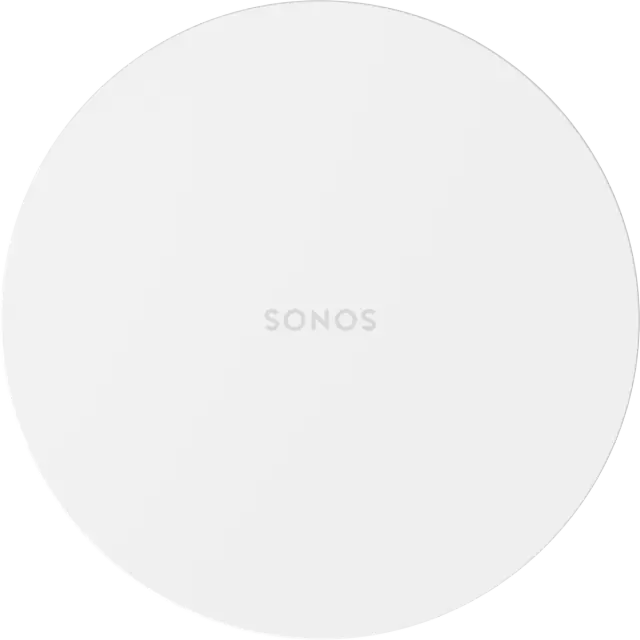

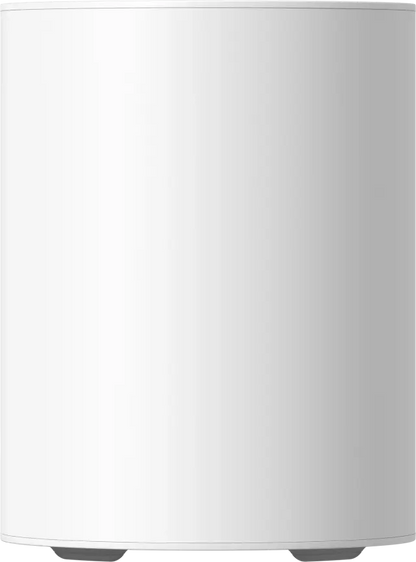

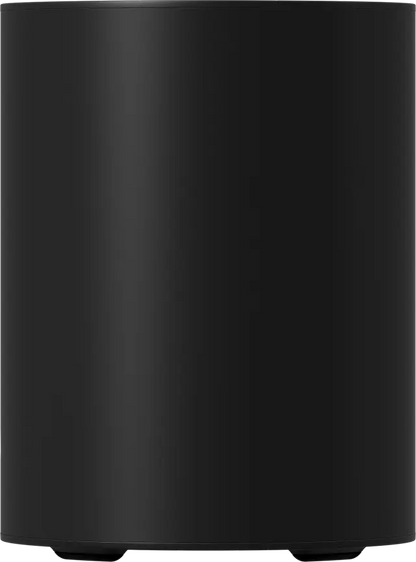

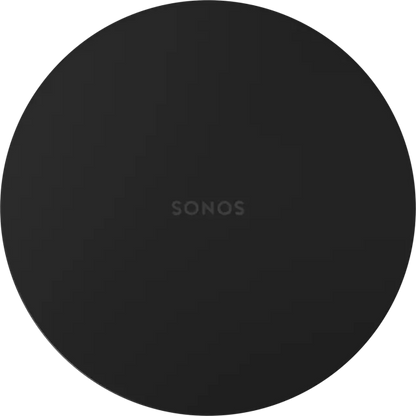

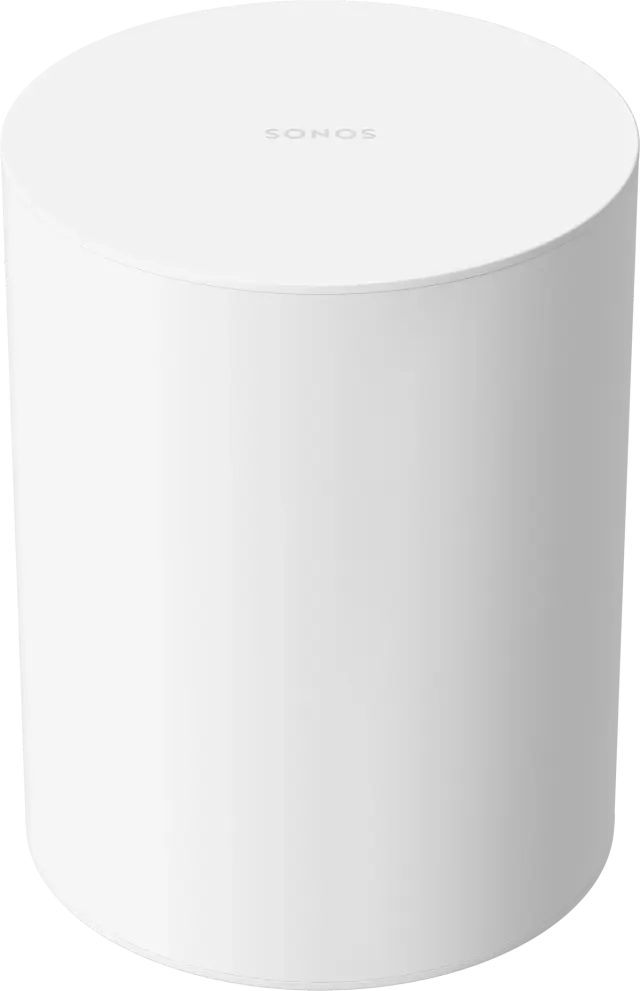

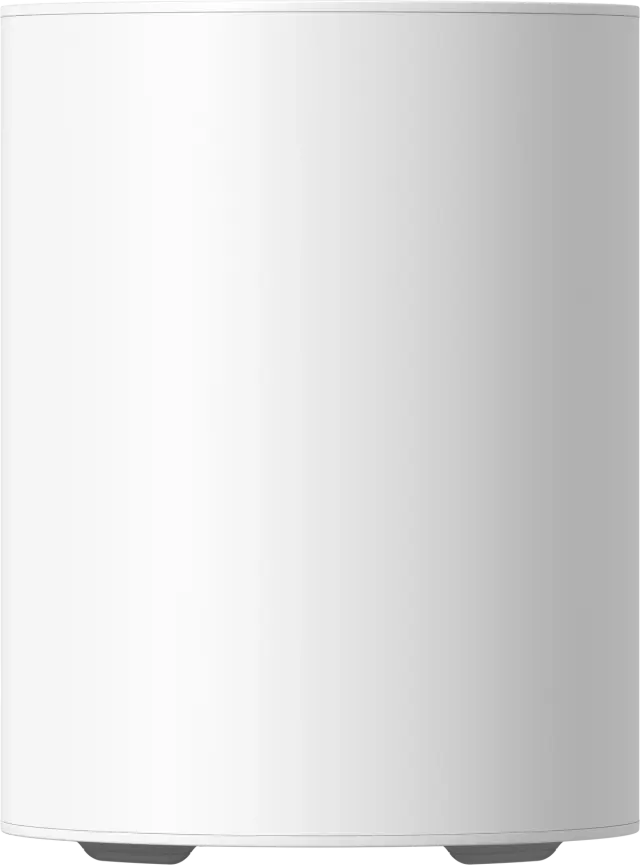

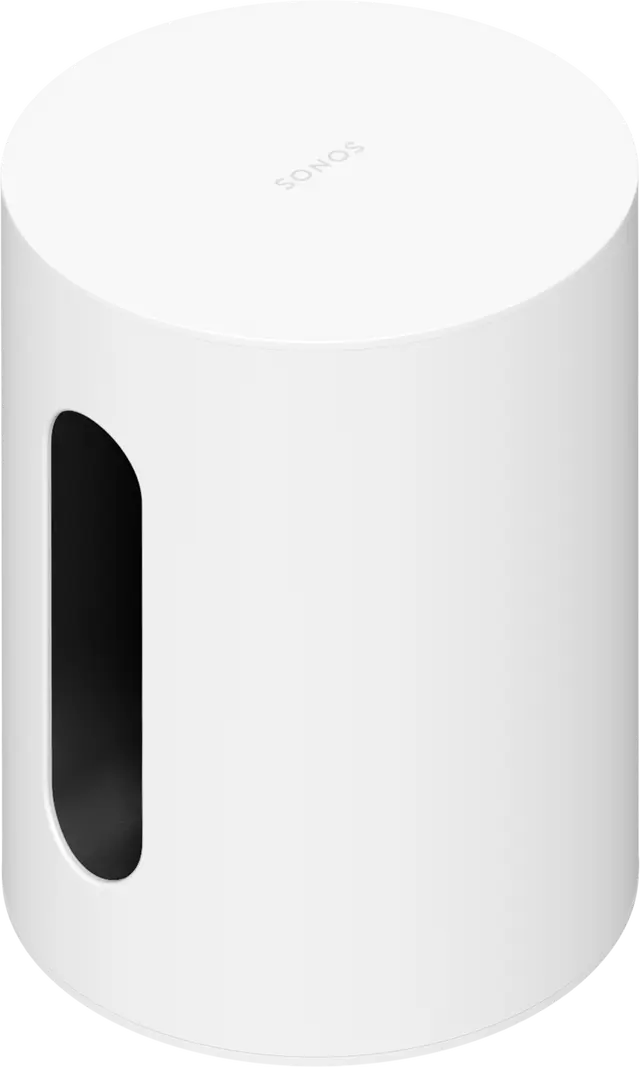

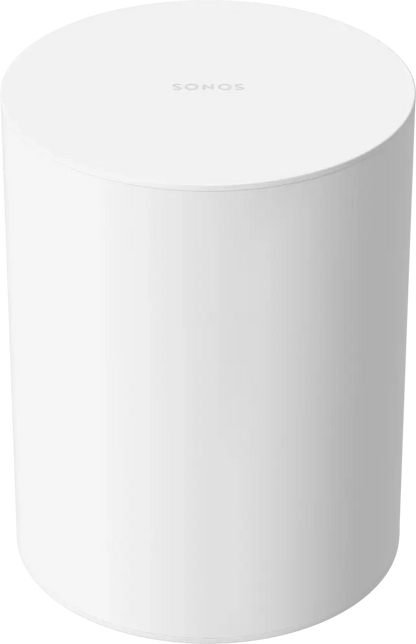

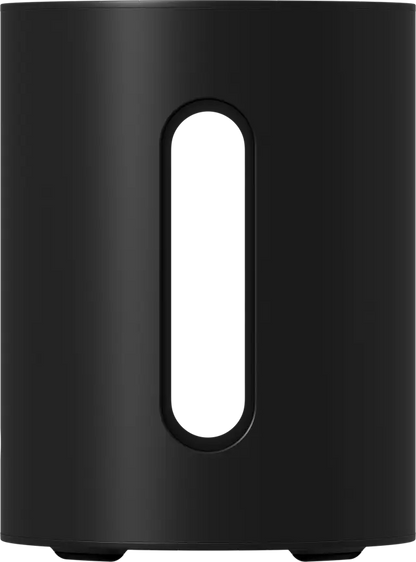

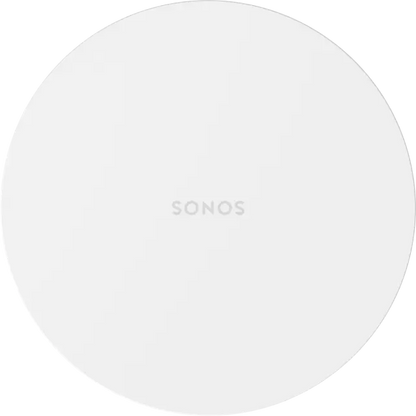

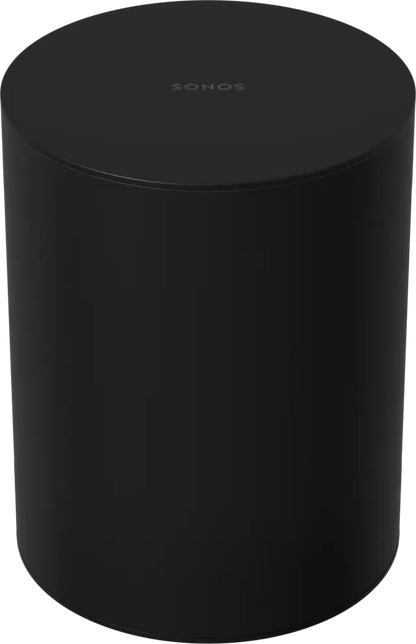

The unique cylindrical design looks at home in your home.

Elegant and compact, Sub Mini blends in beside your furniture and easily fits under a desk or table.

Sub Mini connects to your system over WiFi, so you can place it wherever it fits and looks best in the room.

With a single cable and app-guided setup, Sub Mini makes it simple to enjoy fuller, more detailed sound.

Just plug in the power cable, open the app, and follow a few simple instructions to add Sub Mini to your system.

The volume automatically adjusts along with your paired soundbar or speaker. Use the Sonos app to customise the EQ and change the bass level to your preference.

Audio
Amplifiers: Both Class-D digital amplifiers are perfectly tuned to the unique acoustic architecture.

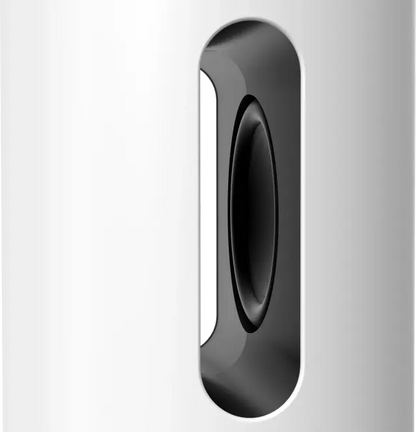

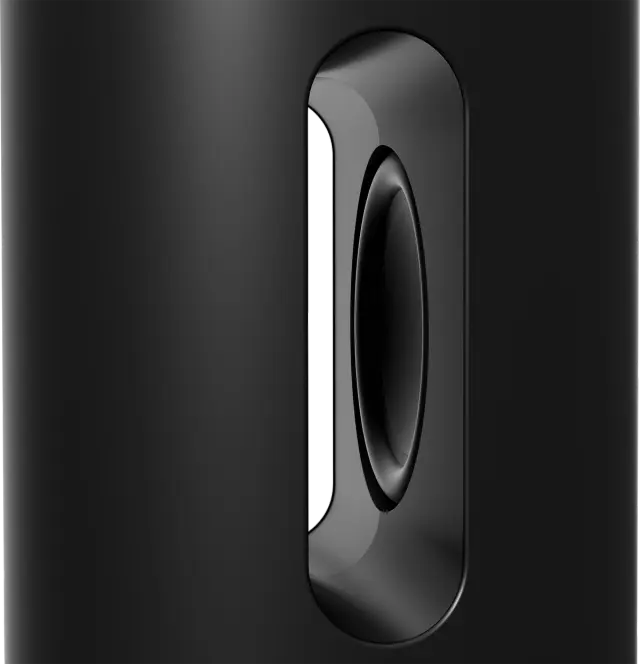

Woofers: Dual 6" woofers face inwards for a force-cancelling effect.
Architecture: Sealed cabinet neutralises distortion and enhances bass response.
Frequency Response: As low as 25 Hz
EQ: Audio settings automatically equalise to balance Sub Mini and the paired Sonos product(s). Use the Sonos app to adjust bass, treble, and loudness.
Trueplay: This software measures the acoustics of the room then fine-tunes your Sonos system. Supported iOS device required.

Details + Dimensions
Dimensions: Diameter: 230 mm, Height: 305 mm
Weight: 0.43 kg
Colours: Black, White
Finish: Matte

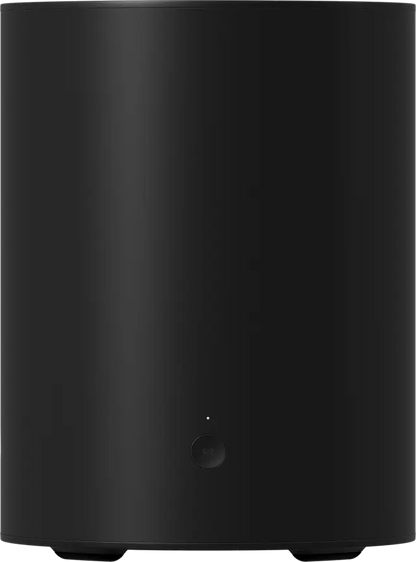

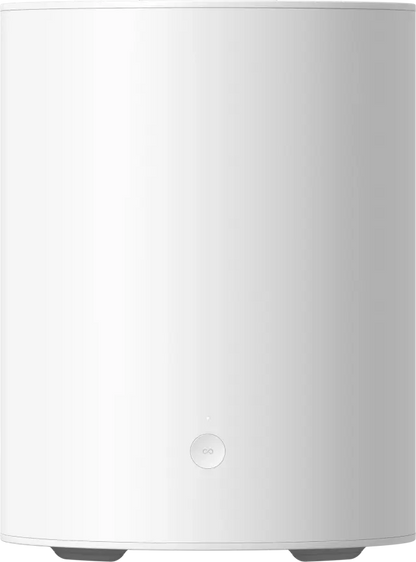

Join Button: Press once to add Sub Mini to your system during setup.

Power + Connectivity
WiFi: Connect to WiFi with any 802.11a/b/g/n 2.4 or 5 GHz broadcast-capable router.

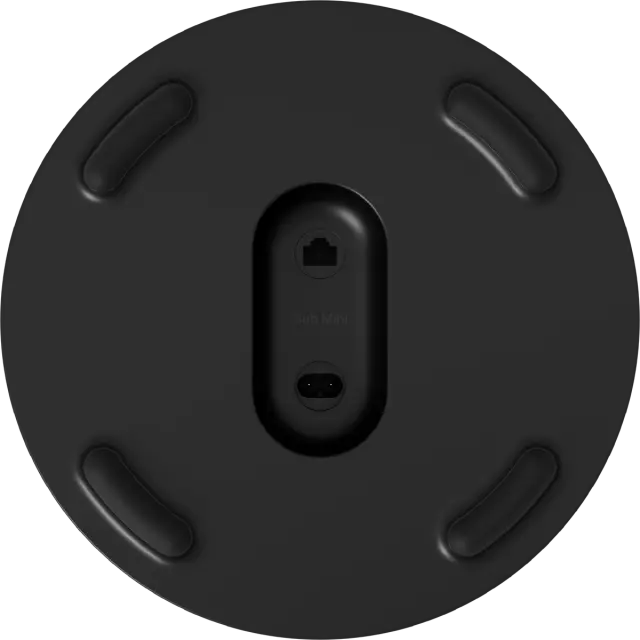

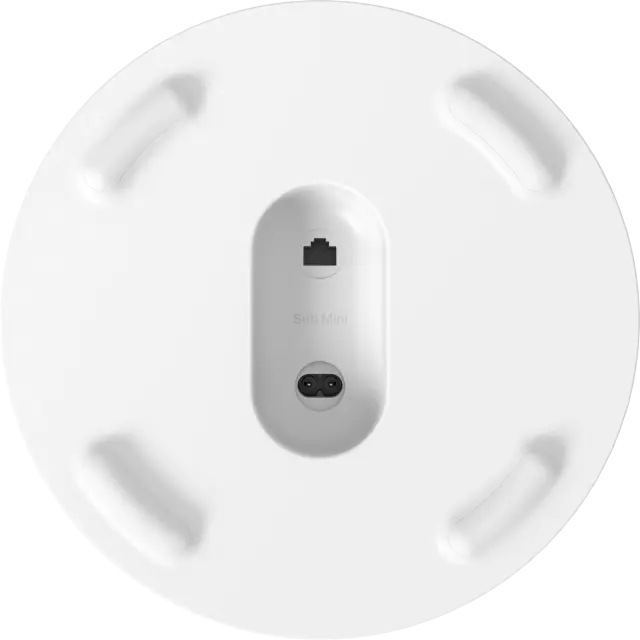

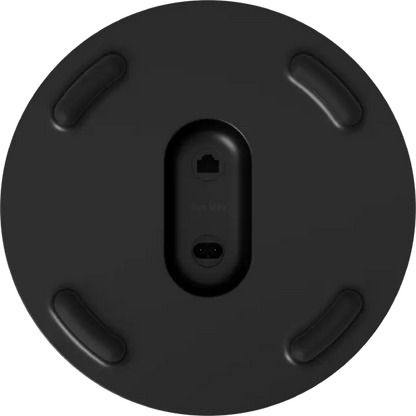

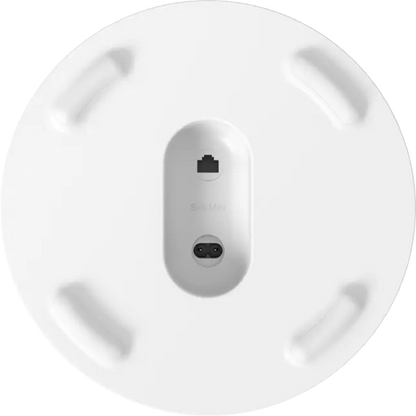

Ethernet: 10/100 port for hardwiring to your router
Voltage: 100-240V 50/60Hz internal power supply
CPU: Dual core architecture, ARM Cortex-A9 processor, ARM Cortex-M4 processor
Memory: 4GB SDRAM, 4GB NV
Operating Temperature: 0°C to 40°C

Box Contents
Sonos Sub Mini
Power Cable I: 2 m length
Documentation: Quickstart Guide and legal/warranty information

Requirements
WiFi: Internet connection
Power Source: Nearby electrical outlet
Sonos app: The latest generation of the Sonos app running on a compatible device
Sonos Product: At least one amplified non-portable product, such as One, One SL, Ray, or Beam
